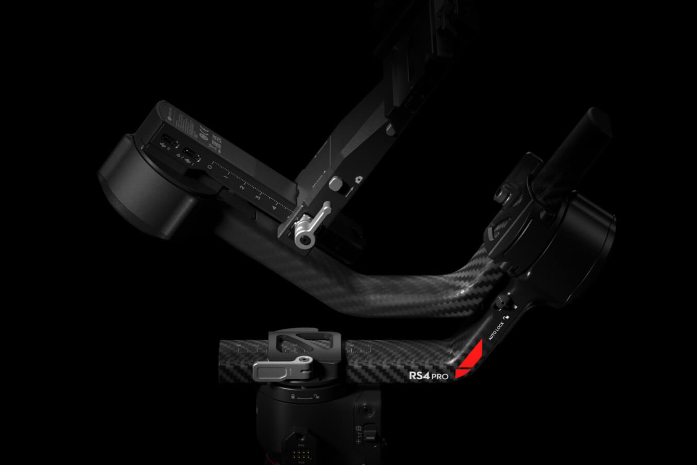

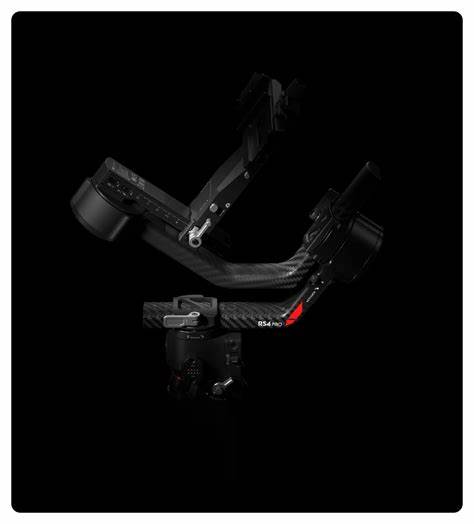

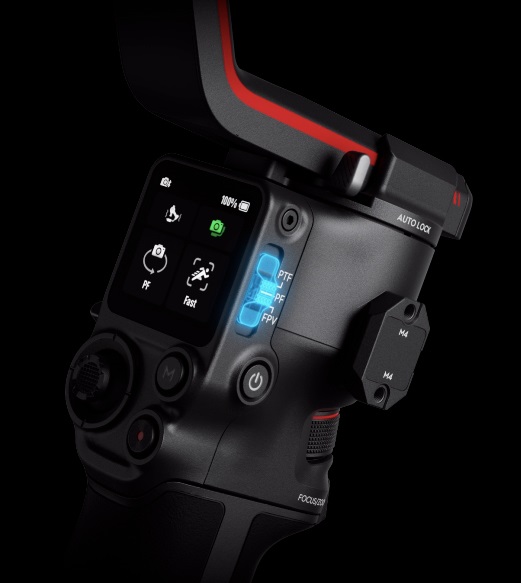

Built for professional filmmakers and content creators, it supports a wide range of camera setups while offering advanced features such as automated tracking, smooth motion control, and intelligent shooting modes.
| Accessory Port |
| Ronin Series Accessories (RSA)/NATO Ports |
| 1/4"-20 Mounting Hole |
| Cold Shoe |
| Video Transmission/LiDAR Range Finder Port (USB-C) |
| RSS Camera Control Port (USB-C) |
| Focus Motor Port (USB-C) |
| Battery |
| Model: BG30-1950mAh-15.4V |
| Type: LiPo 4S |
| Capacity: 1950 mAh |
| Energy: 30 Wh |
| Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.) |
| Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. It is recommended to use chargers supporting QC 2.0 or PD protocols.) |
| Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections |
| Bluetooth 5.1 |
| Charging Port (USB-C) |
| Ronin App Requirements |
| iOS 11.0 or above |
| Android 8.0 or above |
| Languages Supported by the Touchscreen |
| English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Working Performance |
| Tested Payload |
| 4.5 kg (10 lbs) |
| Maximum Controlled Rotation Speed |
| Pan: 360°/s |
| Tilt: 360°/s |
| Roll: 360°/s |
| Mechanical Range |
| Pan Axis: 360° continuous rotation |
| Roll Axis: -95° to +240° |
| Tilt Axis: -112° to +214° |
| Mechanical & Electrical Properties |
| Operating Frequency |
| 2.400-2.4835 GHz |
| Bluetooth Transmitter Power |
| < 8 dBm |
| Operating Temperature |
| -20° to 45° C (-4° to 113° F) |
| Weight |
| Gimbal: Approx. 1242 g (2.74 lbs) |
| Grip: Approx. 265 g (0.58 lbs) |
| Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs) |
| Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs) |
| Dimensions |
| Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) |
| Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |

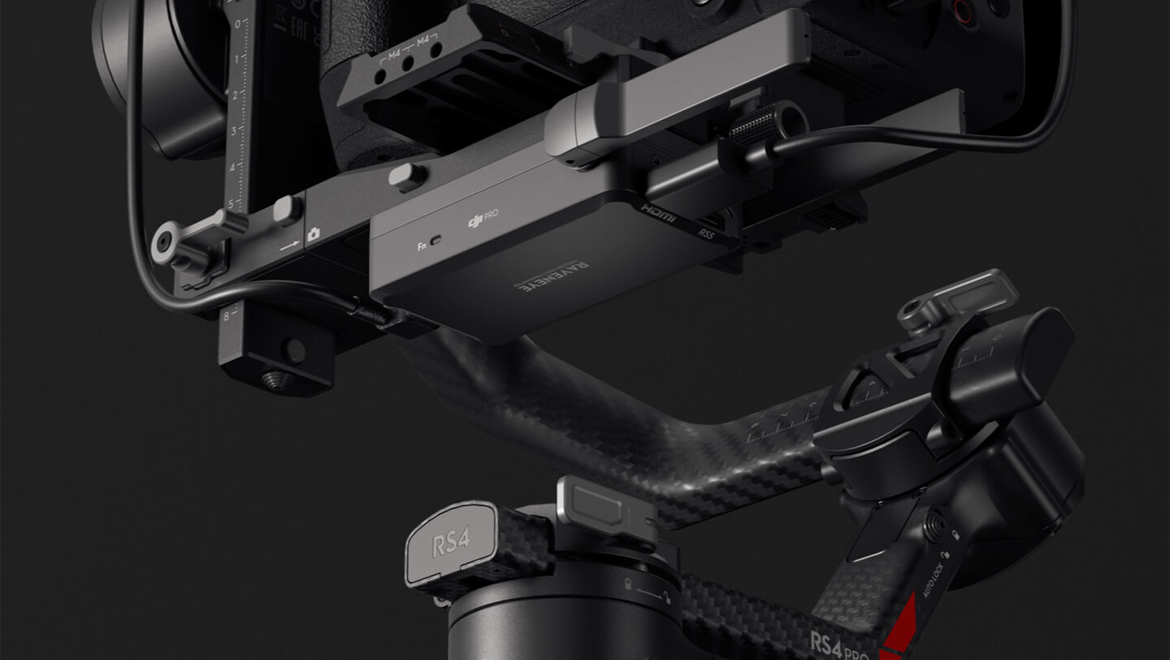

| DJI Ronin Image Transmitter |
| Connections |
| Power/Communication Port (USB-C) |
| HDMI Port (Mini HDMI) |
| RSS Camera Control Port (USB-C) |
| Expansion Port |
| Cold Shoe |
| Operating Frequency |
| 2.400-2.4835 GHz |
| 5.725-5.850 GHz |
| Weight |
| 126 g (0.27 lbs) |
| Dimensions |
| 82×63×24 mm (L×W×H) |
| Transmitter Power (EIRP) |
| 2.400-2.4835 GHz: |
| < 25 dBm (FCC) |
| < 20 dBm (CE/SRRC/MIC) |
| 5.725-5.850 GHz: |
| < 25 dBm (FCC/SRRC) |
| < 14 dBm (CE) |
| Battery |
| Capacity: 2970 mAh |
| Compatible Charger: 5 V/2 A |
| Charging Time: Approx. 2.5 hours |
| Operating Time: Approx. 3.5 hours |
| Transmission Range |
| 200 m (SRRC/FCC) |
| 100 m (CE) |
| Measured in an unobstructed environment free of interference. |
| Latency |
| 60 ms |
| Operating Current/Voltage |
| 900 mA/3.7 V |
| Operating Temperature |
| 0° to 45° C (32° to 113° F) |
