LED Chipset
BLAIR-CG

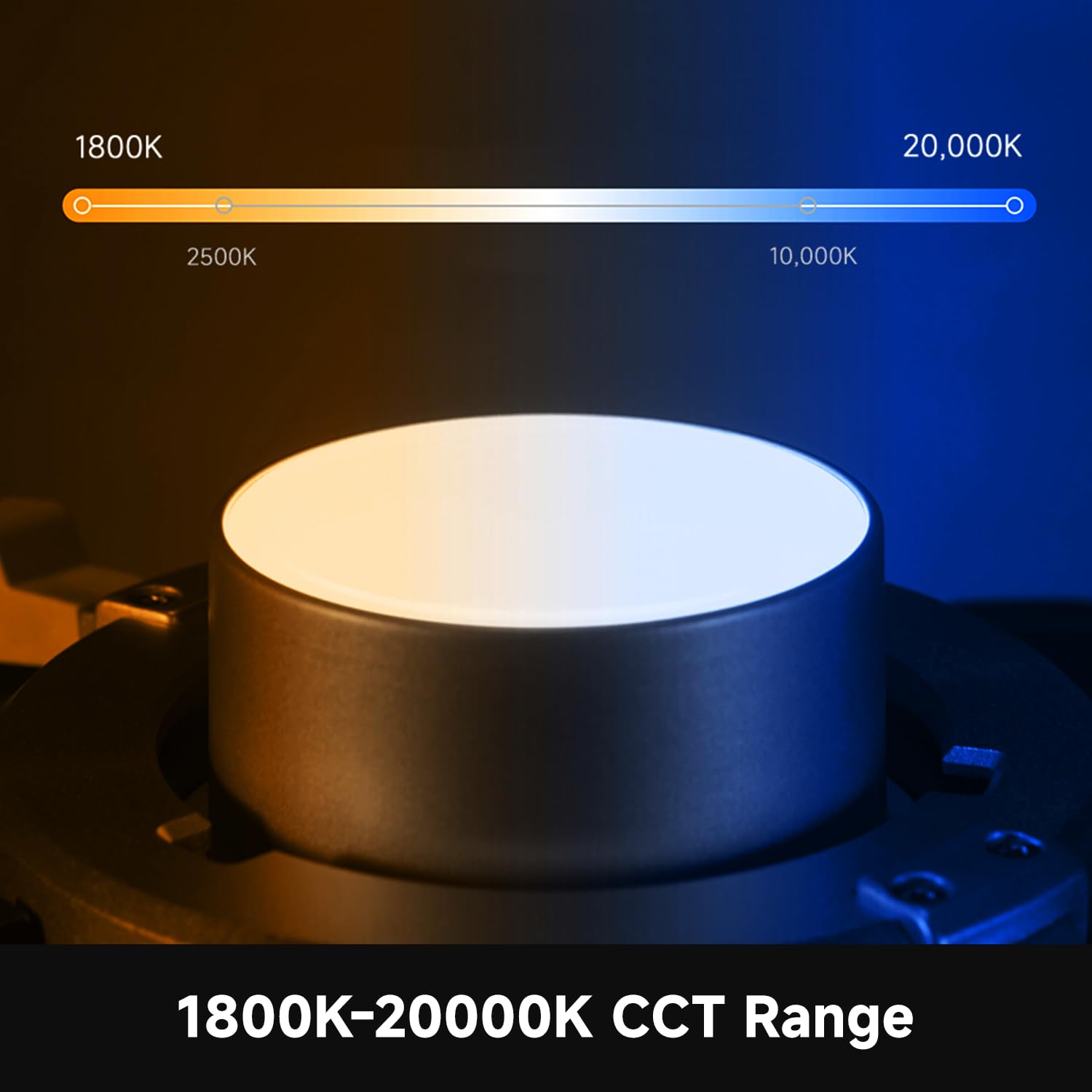

CCT
1,800K – 20,000K
Color Gamut Coverage
90%+ Rec2020
CRI
97
TLCI
99
CQS (5600K)
96
CQS (3200K)
97
SSI (Tungsten)
88
SSI (D56)
84
TM-30 RF (Average)
96
TM-30 RG (Average)
103
Max Power Consumption
100W
Max Power Output
80W
Weather Resistance Rating
IP65
Native COB Beam Angle
60°
Included Reflector Beam Angle
35°
Operating Voltage
100V ~ 240V / 50-60 Hz
DC Adapter Output
19V / 5.3A
V-Mount Battery Operating Voltage
14.4V
USB-C Power Specifications
In 20V / 5A; Out 5V / 0.5A
Operating Temperature
-20°C ~ 45°C / -4°F ~ 113°F
Storage Temperature
-40°C ~ 80°C / -40°F ~ 176°F
Lamp Head Fan Noise Levels (at 1m) Smart Mode
26.1 dBA
Lamp Head Fan Noise Levels (at 1m) High Mode
26.7 dBA
Lamp Head Fan Noise Levels (at 1m) Medium Mode
24.4 dBA
Lamp Head Fan Noise Levels (at 1m) Silent Mode
0 dBA
Control Methods
Data Ports
USB-C, Locking 3-Pin DMX Terminal
Control Methods
On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, CRMX, Sidus Link Pro Auto-Patching and Auto-Configuration
Firmware Upgradeable
Sidus Link, Sidus Link Pro, USB-C
Screen Type
TFT
Wireless Range Sidus Bluetooth
≤100m / ≤262.5ft
Wireless Range CRMX (TimoTwo)
≤100m / ≤262.5ft
Dimensions
Lamp Head (Without Yoke)
10.1 x 10.4 x 14.7cm
4.0 x 4.1 x 5.8in
Lamp Head (With Yoke)
16.7 x 22.5 x 14.7cm
6.6 x 8.9 x 5.8in
Weight
Lamp Head (Without Yoke)
1.01kg / 2.23lbs
Lamp Head (With Yoke)
1.35kg / 2.98lbs
AC Power Adapter
405g / 0.89lb

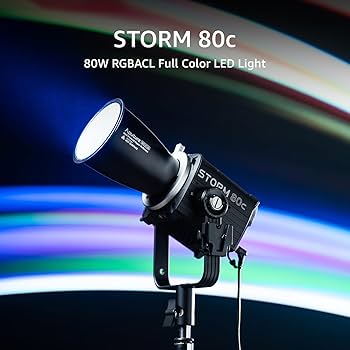

| 80W tunable color compact point source lamp with Mini ProLock Bowens Mount |
| Portable, powerful, and colorful. Take your lighting palette anywhere with this compact 80W point source fixture featuring the BLAIR-CG light engine. |
